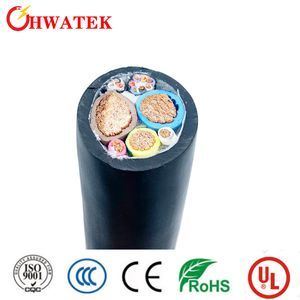

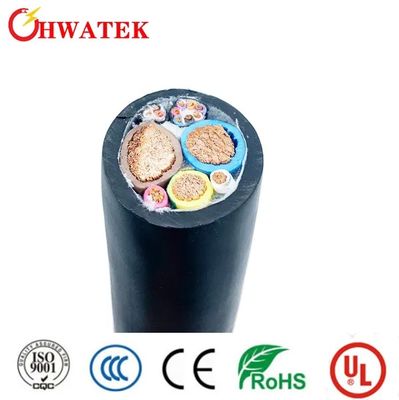

1000V High Voltage DC Electric EV Charging Cable with TPU Insulation and RoHS Compliant Multicore Design

Büyük resim : 1000V High Voltage DC Electric EV Charging Cable with TPU Insulation and RoHS Compliant Multicore Design

Ürün ayrıntıları:

Sertifika:	ISO9001, CE, CCC, RoHS

Ödeme & teslimat koşulları:

Min sipariş miktarı:	3.000 Metre
Fiyat:	US $0.5-1 / Meter

İletişim

Detaylı ürün tanımı

Kılıf malzemesi:	TPE	Yalıtım malzemesi:	TPU
Malzeme şekli:	Yuvarlak tel	Kablo Spesifikasyonu:	2C × 80mm2+1C × 25mm2+2c × 4mm2+(3C × 0.75mm2) (P2)+(7c × 0.75mm2)
İletken malzemesi:	Çıplak bakır telli	İletken boyutu:	2580/0,20 ±0,008 mm, 798/0,20 ±0,008 mm, 224/0,15±0,008 mm
Dış çap:	12,40±0,25 mm, 7,00±0,20 mm, 2,70±0,15 mm, 1,40±0,10 mm	Yalıtım kalınlığı:	1,60 mm, 1,20 mm, 1,00 mm, 0,50 mm
Nominal Gerilim:	DC 1000V	Nominal Sıcaklık:	Ceket -40 ~ 90ºC, Yalıtım -40 ~ 125ºC
Maksimum şef direnci:	0,242Ω/km, 0,78Ω/km, 4,95Ω/km, 26Ω/km	Yalıtım voltajı dayanıklı:	AC 2.5kv/5 dakika, sızıntı akımı ≤5mma
Min yalıtım direnci:	500mΩ.km	Çekme Dayanımı:	≥20mpa
uzama:	≥%300
Vurgulamak:	DC Electric EV Charging Cable , TPU Insulation EV Charging Cable , RoHS Compliant EV Charging Cable

1000V HV High Voltage EV Power Charger Multicore DC Electric Wire Cable

Product Specifications

SPECIFICATION	CABLE NAME	EV Cable
CABLE SPEC	2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2) RoHS Compliant
Item	A: 2C×80mm2 B: 1C×25mm2 C: 1C×4mm2 D: (3C×0.75mm2)(P2) E: (7C×0.75mm2)

Detailed Construction

Component	Specification

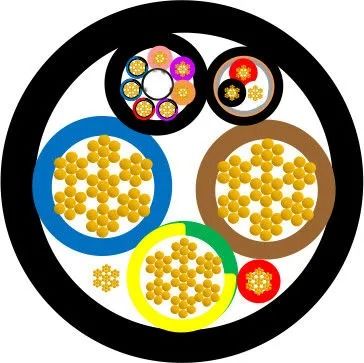

CONDUCTOR	Material: Bared copper stranded Size: - 2580/0.20 ±0.008mm - 798/0.20 ±0.008mm - 224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar - 40/0.15±0.008mm+10/0.19mmTinsel+200DKevlar - 40/0.15±0.008mm+10/0.19mmTinsel+200D Kevlar
O.D.(Ref.)	12.40±0.25mm \| 7.00±0.20mm \| 2.70±0.15mm \| 1.40±0.10mm \| 1.40±0.10mm
INSULATION	Material: Thermoplastic(EF2585,85±3A) Min. average thickness: 1.60mm \| 1.20mm \| 1.00mm \| 0.50mm \| 0.50mm Min.thickness at any point: 1.34mm \| 0.98mm \| 0.80mm \| 0.35mm \| 0.35mm O.D.: 15.60±0.40mm \| 9.60±0.30mm \| 4.70±0.20mm \| 2.50±0.10mm \| 2.50±0.10mm
CABLING-1	Filler: / \| Cotton \| Cotton Material: / \| AL-mylar(facing out) \| Non-woven
BRAID	Material: / \| Tinned copper \| / Size: / \| 0.12mm,≥60% \| /
In-JACKET	Material: / \| TPE \| TPE Min. average thickness: / \| 0.60mm \| 0.60mm Min.thickness at any point: / \| 0.42mm \| 0.42mm O.D.: / \| 7.20±0.25mm \| 9.70±0.25mm
CABLING	Filler: Strengthed PP rope Material: Non-woven(≥25% overlapping) Assembly: 2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2)
JACKET	Material: TPU Min. average thickness: 2.80mm Min.thickness at any point: 2.28mm O.D.: 38.00+0.6/-1.00mm

Performance Characteristics

ELECTRICAL CHARACTERISTICS

PHYSICAL PROPERTIES

Rated voltage: DC 1000V
Rated temperature:
- Jacket: -40~90ºC
- Insulation: -40~125ºC
Max. conductor resistance(20ºC):
A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km
Insulation Voltage withstand(Core A &B,10m):
AC 2.5kV/5min,leakage current ≤5mA
Completed cable Voltage withstand(Core A to A &B,10m):
AC 3.5kV/15min,leakage current ≤5mA
Min. Insulation resistance(20ºC, Core A to A &B): 500MΩ.km

Tensile strength: ≥20MPa
Elongation: ≥300%
Aged condition: 110±1ºC×168h
Percent of original tensile strength: ≤±30%
Percent of original elongation: ≤±30%
High temperature pressure test: ≤50%
Heat shock test: No crack
Compatibility test: GB/T 33594
Flame test: GB/T 18380.12-2008
Artificial weathering test: GB/T 33594
Low-temperature impact test: -40ºC×16H, No crack
Chemical stress acid: N-Oxal-acid alkaline solution, N-sodium hydroxide solution:GB/T 33594
Vehicle rolling: Requirements and test methods should be consistent with GB/T 20234.1-2015 7.21
Min. Bend radius: 6*OD
Abrasion resistance: ≥2000times
Resistance against chemicals: GB/T 33594
Crush resistance test: GB/T 33594
Curved around the test: GB/T 33594

Company Profile

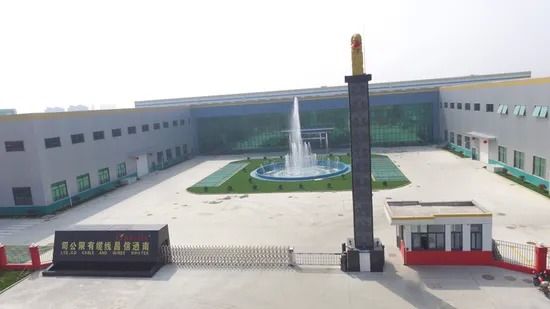

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters.

In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34,000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
