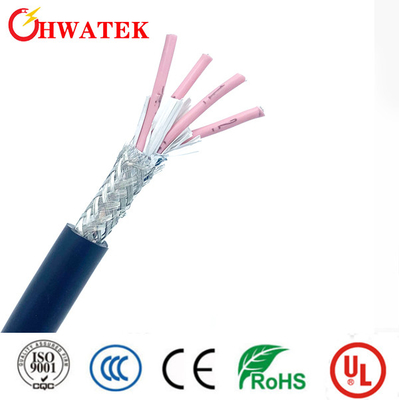

UL 20549 Electric Hook up Wire
Product Specifications
| Sheath Material | PU |
| Insulation Material | PVC, Sr-PVC, PE or PP |
| Material Shape | Round Wire |
| Range of Application | Electronic Equipment |
| Brand | Hwatek |
| Color | Optional |
| Qty/Roll | 305m, 610m or as Request |
| Transport Package | Rolled in Reels, Packed in Pallets |
| Trademark | Hwatek |
| Origin | China |
| HS Code | 8544492100 |
Product Description
Designed for use in communication equipment, instruments, industrial control systems, and electronic/electrical equipment.
Applications
For internal wiring of electronic equipment
Application Standard
UL758 & UL1581 & CSA C22.2 No.210
Product Characteristics
- Excellent insulation performance with stable chemical properties
- Passes UL VW-1 and CSA FT1 vertical flame test
- Heat resistant, anti-acid, and environmentally friendly

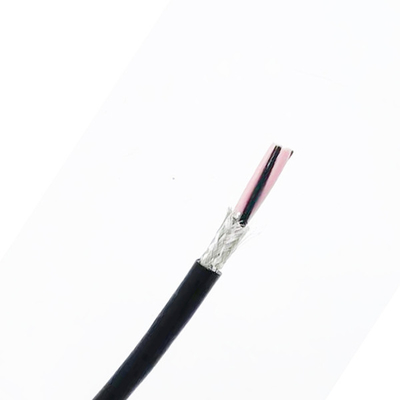

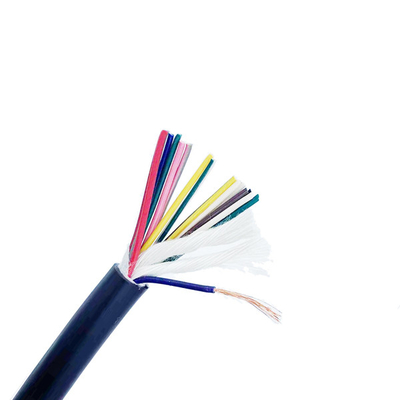

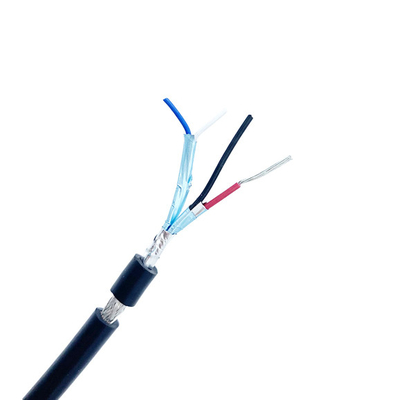

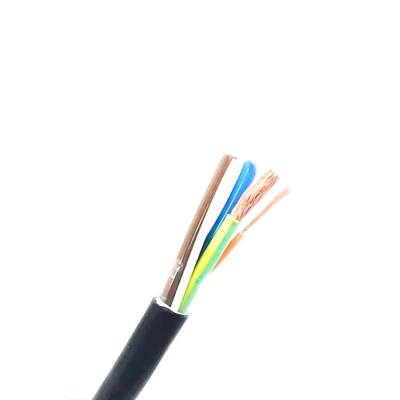

Construction
- Tinned or bare copper, stranded or single conductor (32-4/0AWG)
- PVC, SR-PVC, PE or PP insulation
- Two or more single-core wires twisted or cabled together
- Tinned or bare copper wire with spiral or braid shield or Al-mylar wrapped shield
- PU jacket (Halogen free material available)
Technical Parameters
Rated temperature: 80°C
Rated Voltage: 300V
Product Specifications Table
| Product Number | Conductor | Size AWG | NO./mm | Conductor Dia. mm | Nom. Thickness mm | Nom. Dia. mm | Tape thick. mm | Dia. of braid strand mm | Nom. Thick. mm | Nom. Dia. mm | Max. Cond. Resistance (200C) Ω/km |
| HT20549**101 | 3C | 28 | 7/0.127 | 0.38 | 0.26 | 0.80 | 0.025 | 0.10 | 0.80 | 3.80 | 223 |
| HT20549**102 | 3C | 26 | 7/0.16 | 0.48 | 0.26 | 0.90 | 0.025 | 0.10 | 0.80 | 4.04 | 140 |
| HT20549**103 | 3C | 24 | 11/0.16 | 0.60 | 0.26 | 1.12 | 0.025 | 0.10 | 0.80 | 4.51 | 87.6 |
| HT20549**104 | 3C | 22 | 17/0.16 | 0.76 | 0.26 | 1.30 | 0.025 | 0.10 | 0.80 | 4.90 | 55.4 |
| HT20549**105 | 6C | 28 | 7/0.127 | 0.38 | 0.26 | 0.80 | 0.025 | 0.12 | 0.80 | 4.70 | 223 |
| HT20549**106 | 6C | 26 | 7/0.16 | 0.48 | 0.26 | 0.90 | 0.025 | 0.12 | 1.00 | 5.30 | 140 |
| HT20549**107 | 6C | 24 | 11/0.16 | 0.60 | 0.26 | 1.12 | 0.025 | 0.12 | 1.00 | 6.00 | 87.6 |
Remark: Optional core wire number 2C-50C, and shielding way
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certificates do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How do you guarantee product quality?
A: We provide pre-production samples before mass production and conduct final inspection before shipment.
